REW Signature Product · GLV Series
Globe Valves
Z-Type · Y-Type · Angle · Forged Steel · 15mm – 1200mm
The definitive throttling valve — engineered for precise flow regulation, pressure drop control, and tight shut-off in steam, water, oil and chemical services. REW manufactures globe valves in Z-pattern, Y-pattern, angle and forged steel configurations to BS 1873, API 602 and API 623 standards.
Size Range
15mm to 1200mm
Pressure Class
PN10 – PN400
Standards
BS · API · DIN
Body Material
CI · CS · SS · Brass

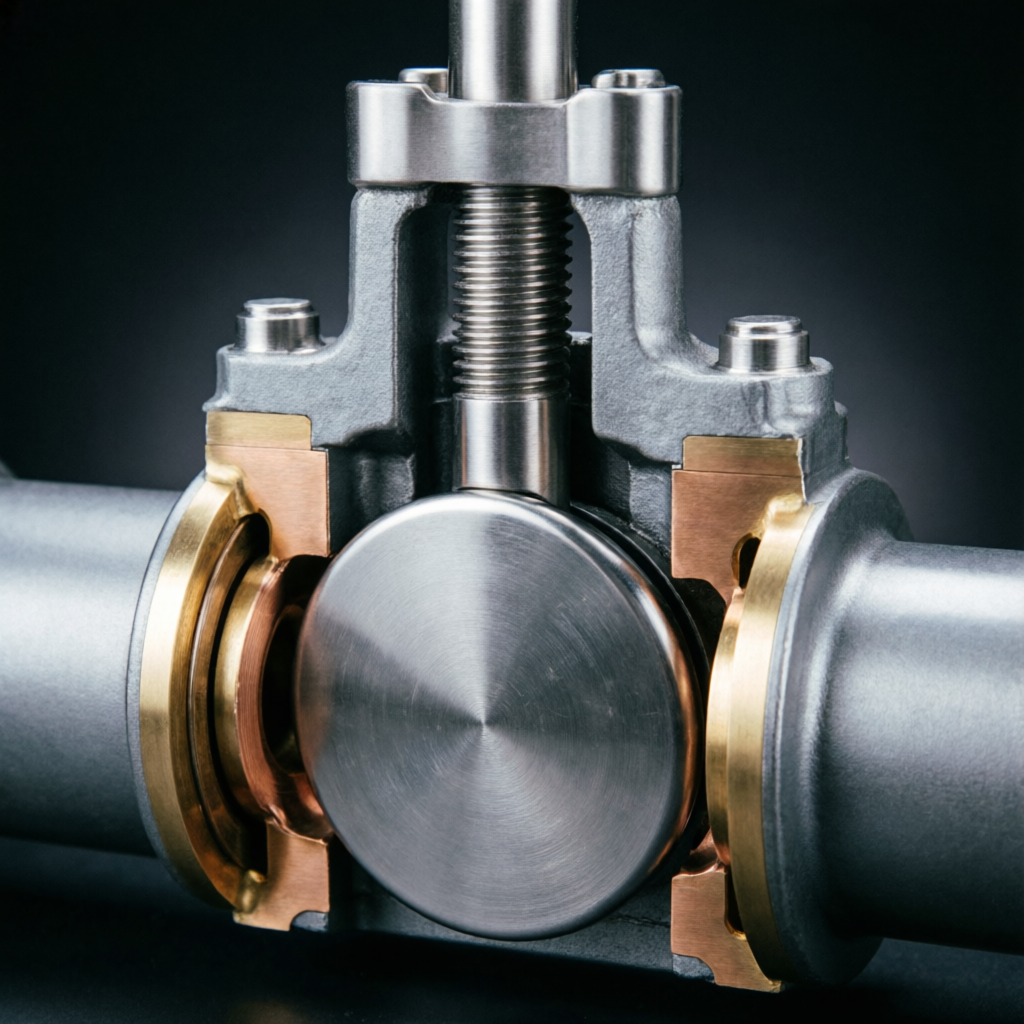

CROSS-SECTION · 01
Product Overview
The Master of Flow Regulation
A globe valve is a linear-motion valve designed for throttling and regulating flow. Unlike gate valves, the disc moves perpendicular to the seat, creating a controlled restriction that allows precise adjustment of flow rate, pressure and temperature.
The characteristic S-shaped flow path creates higher pressure drop than a gate valve — but delivers unmatched control accuracy. REW manufactures globe valves in four core configurations: Z-type (standard), Y-type (low resistance), angle pattern (90° turn), and forged steel (high-pressure).
Precise Throttling
Linear disc travel enables accurate flow control from 0% to 100%
Bubble-Tight Shutoff
Metal or soft seat delivers zero-leakage isolation when closed
4 Configurations
Z, Y, Angle and Forged Steel — one solution for every application
High Pressure
Forged steel variants rated to PN400 / Class 2500
Product Variants
Four Core Configurations
Each engineered for a specific flow control challenge — from low-pressure water service to extreme high-pressure steam in power generation.
Z-GLV
Type 01
Z-Type Globe Valve
Classic Z-pattern body with horizontal seat — the highest throttling accuracy of any globe configuration. Ideal for steam, feedwater and general industrial service where precise flow control is critical.
Highest throttling accuracy of all globe types
S-shaped flow path for controlled restriction
Backseat feature for packing replacement under pressure
Multiple disc profiles: flat, needle, parabolic, plug
Size: 15mm – 600mm (½" – 24")
Pressure: PN16 – PN160 / Class 150 – 900
Material: CI, CS, SS 304/316, Alloy Steel
Standard: BS 1873, API 623, DIN 3356
Primary Applications
Steam Systems
Feedwater
Power Plants
Refineries
Y-GLV
Type 02
Y-Type Globe Valve
45° angled stem and seat deliver lower pressure drop than Z-type while maintaining excellent throttling characteristics. The streamlined flow path reduces erosion and is ideal for high-flow main steam lines.
45° angled stem — lower pressure drop than Z-type
Streamlined flow path reduces erosion
Easier to clean and inspect than Z-type
Preferred for main steam and high-flow service
Size: 50mm – 1200mm (2" – 48")
Pressure: PN16 – PN250 / Class 150 – 1500
Material: CS, SS, Alloy Steel
Standard: BS 1873, DIN 3356
Primary Applications
Main Steam
High-Flow
Low ΔP
Power Gen
A-GLV
Type 03
Angle Pattern Globe
90° flow turn eliminates one elbow fitting — saves space, reduces pressure loss and simplifies piping layouts. Self-draining design prevents sediment accumulation. Perfect for boiler blowdown and heater drains.
90° flow turn eliminates one elbow fitting
Self-draining design prevents sediment buildup
Compact footprint for tight piping layouts
Ideal for boiler blowdown and heater drains
Size: 15mm – 300mm (½" – 12")
Pressure: PN16 – PN100 / Class 150 – 600
Material: CI, CS, SS
Standard: BS 1873, ASME B16.34
Primary Applications
Boiler Feed
Blowdown
Heater Drains
Compact Layout
FS-GLV
Type 04
Forged Steel Globe
A105 / F304 / F316 forged body machined from a single billet — no casting porosity, superior grain structure, highest strength-to-weight ratio. The ultimate high-pressure, high-temperature solution for critical service.
Single billet forging — no casting porosity
Superior grain structure for maximum strength
Highest strength-to-weight ratio available
API 602 compliant for critical service
Size: 15mm – 100mm (½" – 4")
Pressure: Class 800 – 2500 / PN100 – PN400
Material: A105, F304, F316, F304L, F316L
Standard: API 602, BS 5352
Primary Applications
High Pressure
Critical Service
Refineries
Small Bore
Manufacturing Process
Watch Our Production Line
From raw casting to final hydrostatic test — witness seven decades of valve engineering mastery in motion.
REW Globe Valve Manufacturing
From casting to final testing — complete production process
VIDEO LINK PLACEHOLDER — Replace with your video URL
<iframe src="YOUR_VIDEO_URL_HERE" width="100%" height="100%" frameborder="0" allowfullscreen></iframe>
Applications
Serving 40+ Industries
REW globe valves are specified for precise flow control in Pakistan's most demanding applications — from power generation to pharmaceutical manufacturing.
01
Steam Systems
Boiler feed, steam distribution, condensate return, turbine bypass
02
Oil & Gas
Refineries, pipelines, petrochemical, offshore platforms
03

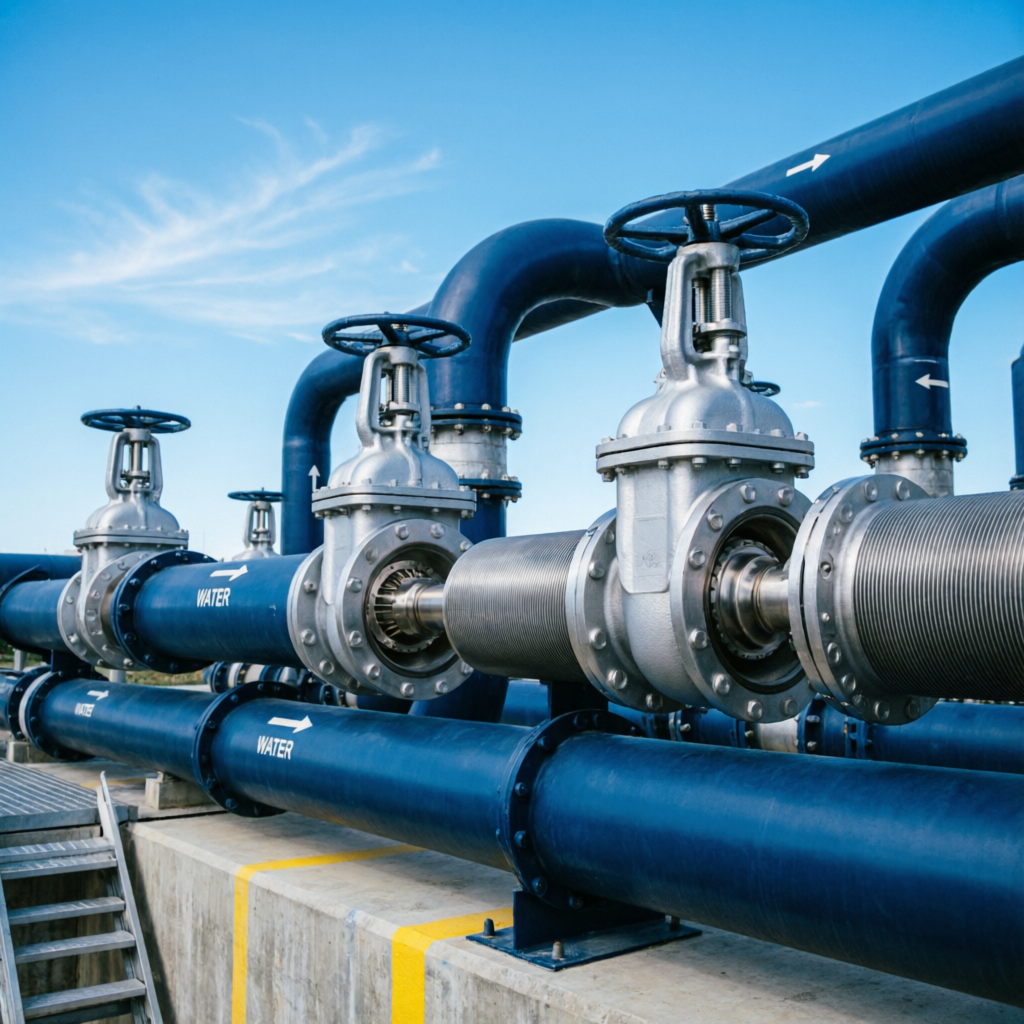

Power Generation
Hydro, thermal, nuclear — WAPDA, K-Electric, NEPRA
04
Chemical Plants
SS valves for corrosive media, acid, alkali service
05
HVAC Systems
Chilled water, heating circuits, cooling towers
06

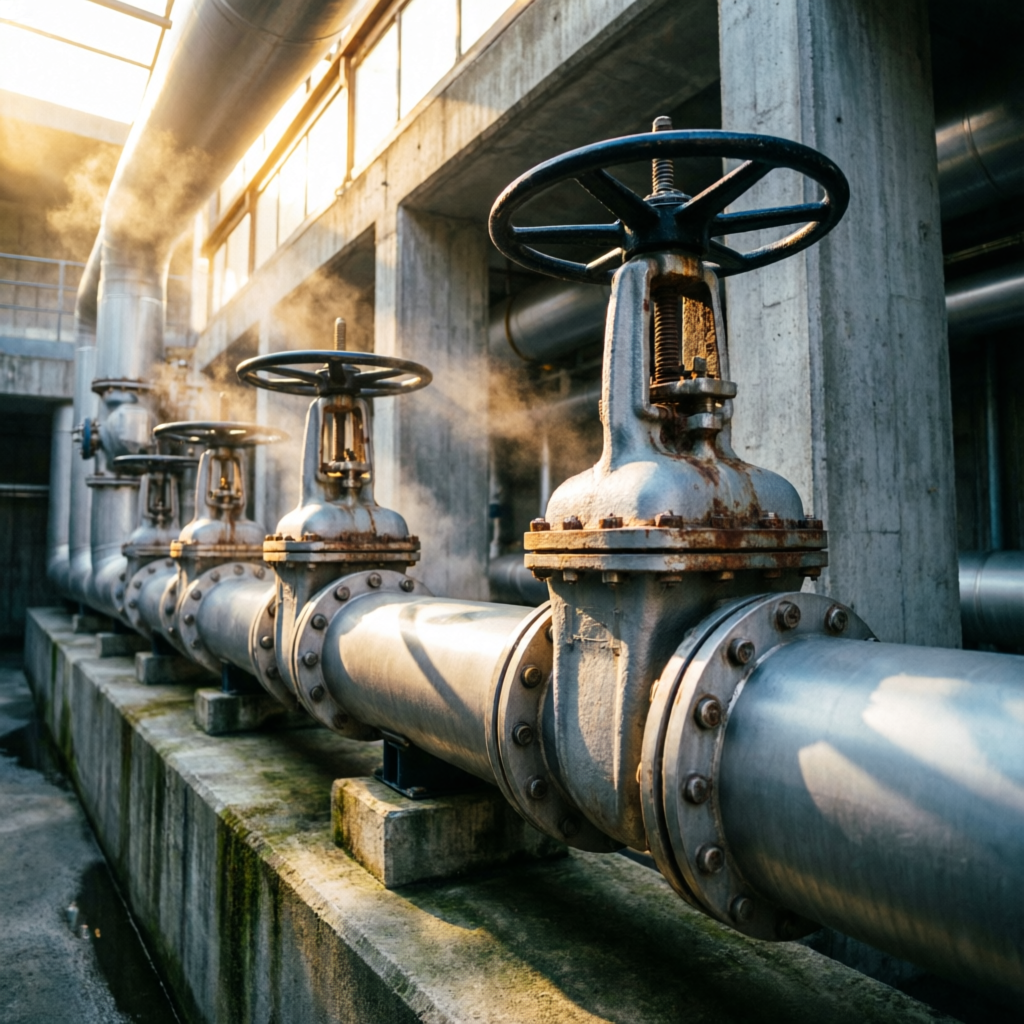

Sugar Mills
Process lines, steam systems, condensate return
07
Pharmaceutical
High-purity SS valves, sanitary fittings, clean-in-place
08
Water Treatment
Municipal supply, desalination, wastewater treatment
09
Textile Mills
Dyeing, steam distribution, process water, finishing
10
Food Processing
Sanitary lines, CIP systems, steam sterilization
11
Cement Plants
Kiln systems, dust collection, process air
12
Fertilizer Plants
Ammonia, urea, process chemicals, high-pressure service
Working Principle
Linear Motion, Precise Control
Step-by-step operation sequence of a REW globe valve — from closed to fully open position.
01
Closed Position
The disc is seated firmly against the seat ring. Handwheel fully clockwise. Stem is at its lowest position. Flow is completely blocked.
02
Opening Sequence
Counter-clockwise rotation of the handwheel raises the stem. The disc lifts away from the seat, beginning to open the flow path through the body.
03
Throttling Position
Partial lift of the disc creates a controlled restriction. Flow rate is proportional to disc travel. This is where globe valves excel — precise modulation.
04
Fully Open Position
Disc is lifted to maximum travel (typically equal to seat diameter). Flow path is established through the S-shaped body. Pressure drop is at its designed maximum.
05
Flow Characteristics
Equal-percentage or linear flow characteristic depending on disc profile (flat, needle, parabolic). Ideal for control applications where predictable response is critical.
06
Backseat Feature
When fully open, the stem shoulder contacts the backseat surface in the bonnet, allowing packing replacement under full system pressure without depressurizing the line.
EXPLODED VIEW
Construction Details
Every Component Engineered
Detailed breakdown of each major component — function, material, and engineering importance.
Body
Primary pressure-containing component with S-shaped flow passage. Cast in CI, CS, SS or alloy steel. Houses the seat rings and provides flanged/threaded ends.
Bonnet
Covers the body opening and provides access for maintenance. Bolted, screwed, or pressure-seal design. Contains the backseat and supports the stem guide.

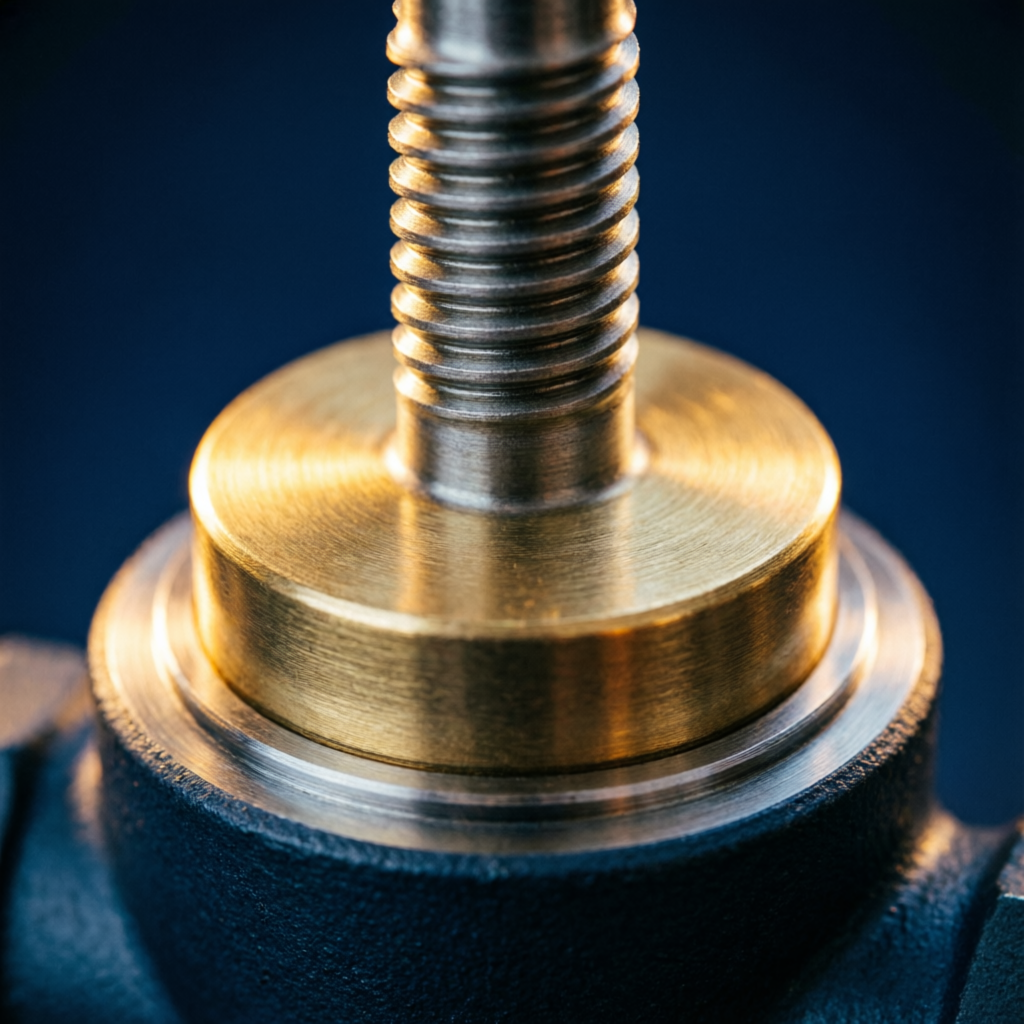

Disc / Plug
The closure and throttling element. Available in flat, needle, ball, parabolic or plug profiles. SS 304/316, Stellite-faced, or 13Cr for erosive service.
Stem
Transmits handwheel motion to the disc. SS 304/316, EN8, EN19 or 17-4PH. Rising stem (OS&Y) design with precision-machined Acme threads.
Seat Rings
Precision-machined sealing surfaces pressed or stellite-welded into the body. Renewable design allows field replacement. Metal-to-metal or soft-seated.
Packing & Gland
Graphite, PTFE, or flexible graphite packing prevents stem leakage. Gland follower compresses packing for adjustable seal. Live-loaded options available.
Yoke & Bush
Supports the stem and handwheel assembly. Bronze bush reduces friction and ensures smooth operation. Yoke arms connect bonnet to yoke sleeve.
Handwheel
Manual operating device. Cast iron or steel. Size proportional to valve torque requirements. Optional gear operator for large sizes.
Technical Specifications
The Engineering Ledger
Complete specification sheet for REW Globe Valves — every dimension, material, and standard documented for your engineering team.
Globe Valve · Full Specification
DOC · GLV-SPEC-2026
| Product Name | Globe Valve — Z-Type, Y-Type, Angle, Forged Steel |
|---|---|
| Size Range | 15 mm (½") to 1200 mm (48") |
| Pressure Rating | PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN400 · Class 150 – 2500 · 10K, 20K JIS |
| Body Material | Cast Iron (CI), Ductile Iron, Carbon Steel WCB/WCC, Stainless Steel CF8/CF8M/CF3M, Alloy Steel WC6/WC9, Brass, Bronze, Duplex SS |
| Disc / Plug | SS 304, SS 316, Stellite faced, 13Cr, Monel — Flat, Needle, Ball, Parabolic, Plug type |
| Stem Material | SS 304, SS 316, EN8, EN19, 17-4PH — Rising / Non-Rising, Outside Screw & Yoke (OS&Y) |
| Seat / Seal | Metal-to-Metal (Stellite 6/21), PTFE, RPTFE, EPDM, NBR, Viton, Graphite, Flexible Graphite |
| Bonnet Type | Bolted, Screwed, Pressure Seal, Welded — with backseat for stem packing replacement under pressure |
| End Connection | Flanged (BSS/ANSI/DIN), Threaded (BSP/NPT), Socket Weld (SW), Butt Weld (BW) |
| Operating Temp | -46°C to +650°C (depending on material & seat) |
| Operation | Handwheel, Gear Box, Electric Actuator, Pneumatic Actuator, Hydraulic Actuator |
| Design Standards | BS 1873, API 602, API 623, DIN 3356, ASME B16.34, MSS SP-61 |
| Face-to-Face | BS 1873, API 623, DIN 3356, ASME B16.10 |
| Flange Standard | BS 4504, BS 10, ANSI B16.5, DIN 2501, EN 1092, ASME B16.47 |
| Testing Standard | BS 1873, API 598, API 6D, ISO 5208 — Shell, Seat & Backseat Hydrostatic Test |
| Coating / Paint | Epoxy Coated (Fusion Bonded), Bitumen, Hot-Dip Galvanized, Bare, Special Coatings on Request |
| Applications | Steam, Water, Oil, Gas, Chemicals, Petrochemical, Power Generation, HVAC, Sugar Mills, Refineries |
| Certification | ISO 9001:2015 · ISO 14001:2015 · ISO 45001:2018 · PSQCA · API 602 |
| Origin | Manufactured in Lahore, Pakistan — Since 1948 |
Engineering Standards
Compliance & Certifications
Every REW globe valve is manufactured and tested to internationally recognized standards.
BS 1873
British Standard
Steel globe valves and globe stop valves. Primary design standard for flanged and butt-welding end globe valves in industrial service.
API 602
API Compact Design
Compact steel gate and globe valves for NPS 4 and smaller. Covers forged body construction for high-pressure service.
API 623
API Steel Globe Valves
Steel globe valves with flanged and butt-welding ends. Modern replacement for BS 1873 in petroleum industry service.
DIN 3356
German Standard
Globe valves and globe stop valves for water supply and general industrial applications. European market compliance.
ASME B16.34
Valves — Flanged, Threaded, Welding
Standard for pressure-temperature ratings, materials, and design requirements for flanged and welded-end valves.
API 598
Valve Inspection & Testing
Standard testing procedures for all valve types. Shell test, seat test, and backseat test requirements.
ISO 5208
International Standard
Industrial valves — Pressure testing of metallic valves. Harmonized international testing protocol.
ASME B16.10
Face-to-Face Dimensions
Standardized face-to-face and end-to-end dimensions for valves. Ensures interchangeability across manufacturers.
BS 4504
Flange Standard
Circular flanges for pipes, valves and fittings. PN designated. Covers bolt patterns and dimensions.
Pressure Ratings
Working & Test Pressures
Pressure-temperature ratings for REW globe valves across all standard pressure classes.
| Pressure Class | Working Pressure (bar) | Shell Test (bar) | Seat Test (bar) | Temperature Limit |
|---|---|---|---|---|
| PN16 | 16 | 24 | 17.6 | -20°C to +200°C |
| PN25 | 25 | 37.5 | 27.5 | -20°C to +300°C |
| PN40 | 40 | 60 | 44 | -20°C to +450°C |
| PN63 | 63 | 94.5 | 69.3 | -20°C to +450°C |
| PN100 | 100 | 150 | 110 | -29°C to +450°C |
| PN160 | 160 | 240 | 176 | -29°C to +500°C |
| PN250 | 250 | 375 | 275 | -29°C to +550°C |
| PN400 | 400 | 600 | 440 | -29°C to +600°C |
| Class 150 | 19.6 | 29.4 | 21.6 | -29°C to +425°C |
| Class 300 | 50 | 75 | 55 | -29°C to +450°C |
| Class 600 | 100 | 150 | 110 | -29°C to +450°C |
| Class 800 | 135 | 202 | 148 | -29°C to +500°C |
| Class 2500 | 420 | 630 | 462 | -29°C to +600°C |
Dimensional Information
Size & Weight Data
Select a size to view detailed dimensional data. All dimensions in millimeters unless otherwise specified.
DN15
DN25
DN50
DN100
DN150
DN200
DN300
Nominal Size (DN)15 mm
Face-to-Face (L)130 mm
Height Open (H)220 mm
Handwheel Diameter100 mm
Flange Diameter95 mm
Bolt Circle65 mm
No. of Bolts4
Weight (approx.)4.5 kg

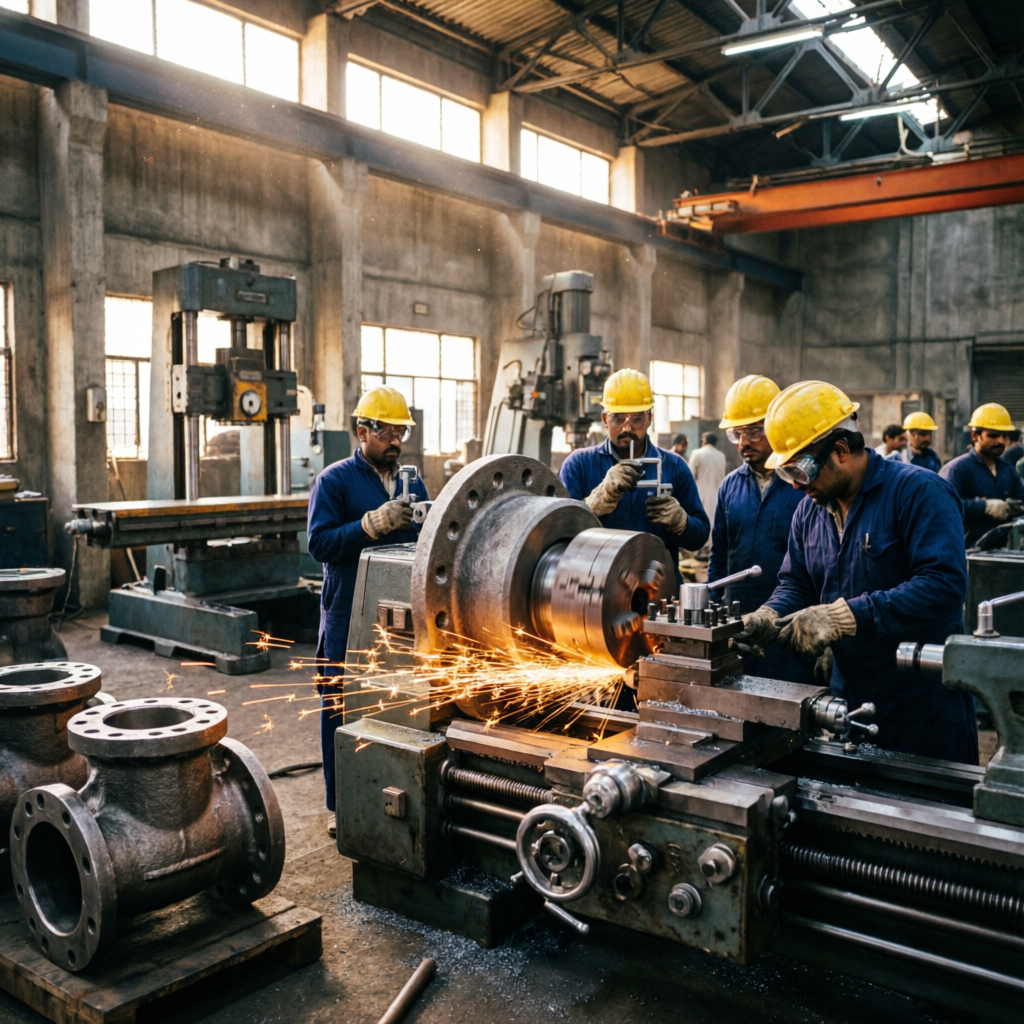

The Forge
Forged with 79 Years of Mastery
From raw casting to final hydrostatic test — every REW globe valve passes through a rigorous manufacturing process refined over seven decades at our Lahore facility.
01
Pattern & Casting
Precision wooden/metal patterns, green-sand and shell-mould casting in CI, CS, SS, alloy steel
02
CNC Machining
CNC lathes and VMCs for seat, bore, flange and stem machining to ±0.02mm tolerance
03
Stellite Hard-Facing
TIG welding of Stellite 6/21 on seats and discs for erosive and high-temperature service
04
Assembly & Lapping
Precision lapping of disc-to-seat interface for bubble-tight shut-off, packing installation
05
Hydrostatic Testing
Shell test at 1.5×, seat test at 1.1×, backseat test — per API 598 / BS 1873
06
Painting & Dispatch
Epoxy coating, nameplate, documentation pack with MTC, test certificate and dimensional report

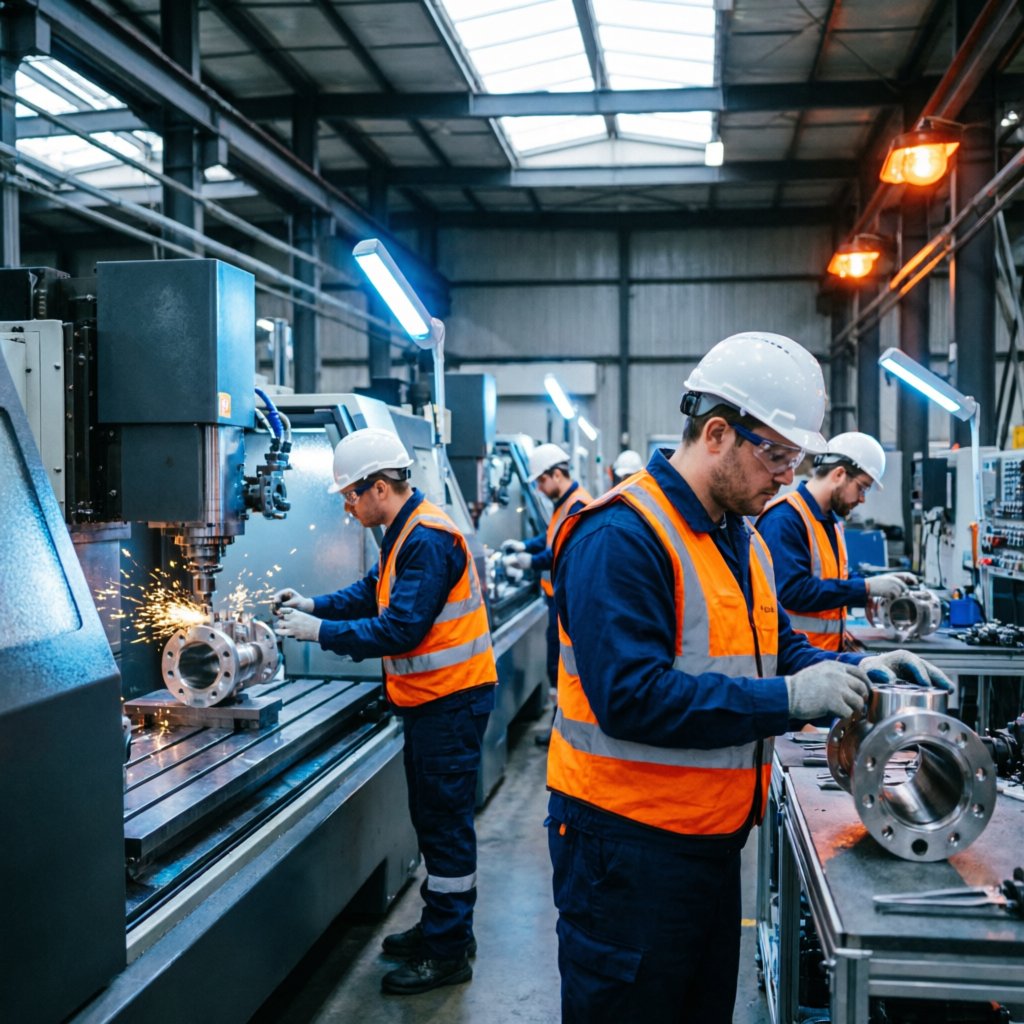

FACILITY · LHR
CNC Machining · Lahore Plant

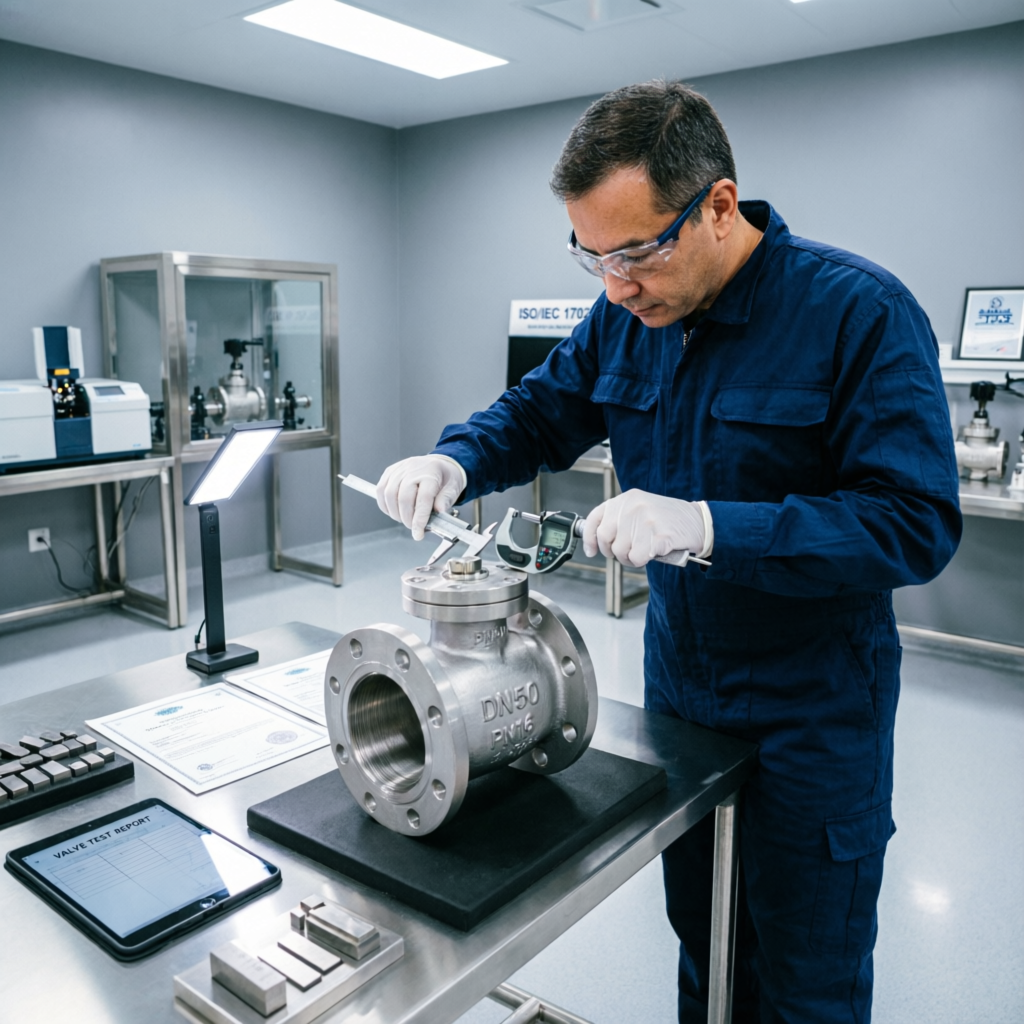

Quality Assurance
Zero-Defect Philosophy
Every valve undergoes rigorous inspection and testing before dispatch. Our quality system is certified to ISO 9001:2015 by TÜV Austria.
Incoming Inspection
Raw material verification — chemical composition and mechanical properties per EN 10204 3.1
Dimensional Inspection
CMM and precision instruments verify all critical dimensions against approved drawings
Hydrostatic Shell Test
1.5× working pressure held for specified duration. No visible leakage permitted
Seat Leakage Test
1.1× working pressure on seat. Zero visible leakage per API 598 / ISO 5208
Visual Inspection
Surface finish, casting defects, machining quality, assembly integrity
Coating Inspection
DFT measurement, adhesion test, holiday detection for epoxy coatings
Identification Marking
Size, pressure class, material grade, heat number, manufacturer logo — permanently marked
Documentation
MTC, test certificates, dimensional reports, painting certificates — complete traceability
QA LAB · LHR
Technical Resources
Download Documentation
Complete technical documentation for engineering, procurement, and installation teams.
Technical Datasheet
Complete specifications, materials, dimensions, and performance data for all globe valve variants.
Download →
Product Catalogue
Full REW product range with technical data, applications, and ordering information.
Download →
Installation Manual
Step-by-step installation guide, torque specifications, and commissioning procedures.
Download →
Maintenance Manual
Preventive maintenance schedules, troubleshooting, spare parts list, and overhaul procedures.
Download →
CAD Drawings
2D and 3D CAD files in DWG, STEP, and IGES formats for integration into your designs.
Download →
Certificates
ISO 9001, ISO 14001, ISO 45001, PSQCA, and type approval certificates.
Download →
Test Reports
Sample hydrostatic test reports, material test certificates, and inspection records.
Download →
Selection Guide
Technical guide for selecting the right globe valve for your application and service conditions.
Download →
Installed Projects
Trusted Across Pakistan
REW globe valves installed in critical infrastructure projects nationwide.
Thermal Power
Muzaffargarh Power Station
Punjab, Pakistan
180+
Valves Installed
PN100
Pressure Class
2024
Completion
Sugar Mills
Chashma Sugar Mill Expansion
Mianwali, Punjab
320+
Valves Supplied
DN15-400
Size Range
2025
Phase 2
Hydropower
Suki Kinari Hydropower
Khyber Pakhtunkhwa
96
Control Valves
PN250
Pressure Class
2026
Ongoing
Chemical
Engro Polymer Chemical Complex
Port Qasim, Sindh
140+
SS Valves
CF8M
Material
2025
Completed
Technical FAQ
Engineering Questions
Answers to the most common technical questions about REW globe valves.
What is the difference between globe valve and gate valve?+
Globe valves are designed for throttling and flow regulation with a disc that moves perpendicular to the seat, creating controlled restriction. Gate valves are designed for on/off service with a gate that lifts completely out of the flow path. Globe valves have higher pressure drop but offer precise flow control, while gate valves have minimal pressure drop when fully open.
What are the different types of globe valves REW manufactures?+
REW manufactures four core configurations: Z-Type (standard pattern with highest throttling accuracy), Y-Type (45° angled stem for lower pressure drop), Angle Pattern (90° flow diversion for compact layouts), and Forged Steel (small bore, high-pressure service to Class 2500). Each serves specific application requirements.
What is the maximum operating temperature for REW globe valves?+
Maximum temperature depends on body material and seat type. Cast iron valves: up to 200°C. Carbon steel valves: up to 425°C. Alloy steel WC6/WC9: up to 595°C. Stainless steel valves: up to 650°C. Forged steel valves: up to 600°C. Soft-seated valves (PTFE/EPDM) are limited to 200°C maximum.
What standards do REW globe valves comply with?+
REW globe valves are manufactured to BS 1873, API 602, API 623, DIN 3356, and ASME B16.34 standards. Testing is per API 598, ISO 5208, and BS 1873. Flanges conform to BS 4504, ANSI B16.5, DIN 2501, and ASME B16.47. Face-to-face dimensions follow BS 1873, API 623, DIN 3356, and ASME B16.10.
What materials are available for globe valve bodies?+
Standard body materials include Cast Iron (GG25), Ductile Iron (GGG40), Carbon Steel (WCB/WCC), Stainless Steel 304 (CF8), Stainless Steel 316 (CF8M), Alloy Steel (WC6/WC9), Brass, Bronze, and Duplex SS. Forged steel options include A105, F304, F316, F304L, F316L, and F22. Special alloys available on request.
How often should globe valves be maintained?+
Recommended maintenance interval is 12-24 months depending on service conditions. Maintenance includes: operational test, packing adjustment/replacement, stem lubrication, visual inspection for leakage, seat condition check, and bolt torque verification. Harsh environments (steam, chemicals) may require more frequent maintenance.
What is the pressure testing procedure for REW globe valves?+
Every valve undergoes: (1) Shell test at 1.5× working pressure for specified duration — no visible leakage permitted. (2) Seat test at 1.1× working pressure — zero visible leakage per API 598. (3) Backseat test for OS&Y design valves. All three tests are documented with test certificates provided with every shipment.
Can REW manufacture custom-sized globe valves?+
Yes. REW can manufacture globe valves in custom sizes from DN15 to DN1200, custom pressure classes up to PN400/Class 2500, special materials including NACE MR0175 compliant alloys for sour gas service, and non-standard face-to-face dimensions. Custom drawings are typically delivered within 48 hours of specification confirmation.
What is the typical lead time for globe valve orders?+
Standard sizes (DN15-DN200): 2-4 weeks. Large sizes (DN250-DN600): 4-6 weeks. Special sizes (DN600+) or exotic materials: 6-10 weeks. Emergency orders can be expedited. Exact lead times confirmed at time of quotation based on current production schedule and material availability.
What type of seat is best for my application?+
Metal-to-metal seats (Stellite-faced): high temperature, abrasive service, steam. PTFE/RPTFE: chemical service, wide temperature range, bubble-tight shut-off. EPDM: water service up to 80°C. NBR: oil and hydrocarbon service. Viton: high temperature chemical service. Selection depends on medium, temperature, pressure, and required leakage class.
What is the difference between Z-type and Y-type globe valves?+
Z-type has a horizontal seat with S-shaped flow path — highest throttling accuracy but highest pressure drop. Y-type has a 45° angled seat with more streamlined flow path — lower pressure drop, better for high-flow applications, easier to clean and inspect. Z-type is preferred for precise control; Y-type is preferred for main steam lines and large sizes.
Can globe valves be automated?+
Yes. REW globe valves can be supplied with electric actuators, pneumatic actuators, or hydraulic actuators. Gear operators are standard for valves DN200 and above. Actuator sizing and mounting flanges per ISO 5211. Positioners and control accessories available for modulating service.
What disc profiles are available?+
REW offers multiple disc profiles: Flat face (standard throttling), Needle (precise low-flow control), Ball (on/off service), Parabolic (equal-percentage flow characteristic), and Plug (linear flow characteristic). Disc profile selection depends on required flow characteristic and application.
What coating options are available?+
Standard coating is fusion-bonded epoxy (FBE) in blue or green, 250-300 microns DFT. Options include: bitumen coating for underground service, hot-dip galvanizing, bare finish, and custom RAL colors. Special coatings available for corrosive environments. Coating specification confirmed at time of order.
What documentation is provided with each shipment?+
Standard documentation includes: Material Test Certificate (MTC) per EN 10204 3.1, Hydrostatic Test Report (shell, seat, backseat), Dimensional Inspection Report, Painting/Coating Certificate, Certificate of Compliance, and Installation/Maintenance Manual. Third-party inspection certificates available on request.
What is the backseat feature and why is it important?+
The backseat is a secondary sealing surface in the bonnet that contacts the stem shoulder when the valve is fully open. This allows packing replacement or adjustment while the valve remains under full system pressure — eliminating the need to depressurize the line for maintenance. Standard feature on all REW OS&Y globe valves.
What is Stellite hard-facing and when is it needed?+
Stellite is a cobalt-based alloy (Stellite 6 or 21) TIG-welded onto seat and disc surfaces for erosive and high-temperature service. It provides 5x longer service life compared to standard stainless steel seats. Recommended for steam service above 400°C, abrasive media, and critical applications where seat erosion would cause frequent maintenance.
Are spare parts available for REW globe valves?+
Yes. Complete spare parts inventory maintained for all standard sizes. Available spares include: discs/plugs, seat rings, stems, packing sets, gaskets, bolts/nuts, handwheels, bushes, and bonnet gaskets. Spare parts typically dispatched within 48-72 hours. Recommended spare parts list provided with each valve order.
What is the warranty period for REW globe valves?+
Standard warranty is 12 months from date of commissioning or 18 months from date of shipment, whichever occurs first. Warranty covers manufacturing defects in materials and workmanship. Extended warranty available on request for critical applications. Full warranty terms provided with quotation.
How do I request a quotation for globe valves?+
Submit your requirements via the quote form on this page, email rewpak@yahoo.com, or call +92 322 276 2222. Include: size, pressure class, material, configuration (Z/Y/Angle/Forged), seat type, end connection, quantity, and application details. Technical team responds within 24 hours with specifications, lead time, and pricing.
Related Products
Complete Your Pipeline Solution
Explore the full REW product range — engineered to work together as a complete flow control system.
ISO 9001:2015
Quality Management · TÜV Austria
ISO 14001:2015
Environmental Management
ISO 45001:2018
Health & Safety Management
PSQCA Mark
Pakistan Standards Certified
Request a Quote
Specify Your Globe Valve Requirement
Share your size, pressure class, material, configuration (Z/Y/Angle/Forged) and quantity — our technical team will respond with specifications, lead time, and competitive pricing within 24 hours.
Quick Quote Request
